SH Series 4000VA 48v Pure sine wave (min 4 batteries max 8 batteries)

Store/Store/Load Shedding Solutions/SH series Inverters

Product Details

48v Dc input-230v AC output

3200 watt continuous power

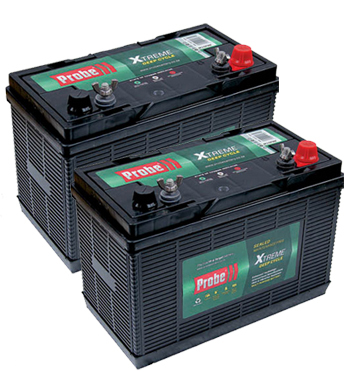

Battery life hrs using 105A/hr Batteries at 50% depth of discharge

(400 cycle life)

Watt	4 batt	8 batt
200	10 hrs	20 hrs
300	6,72 hrs	13,44 hrs
400	5 hrs	10 hrs
600	3,36 hrs	6,72 hrs
800	2,5 hrs	5 hrs
1000	2 hrs	4 hrs
1200	1,68 hrs	3,36 hrs
1400	1,44 hrs	2,88 hrs
1600	1,26 hrs	2,52 hrs
1800	1,12 hrs	2,24 hrs
2000	1 hrs	2 hrs
2200	0,92 hrs	1,83 hrs
2400	0,84 hrs	1,68 hrs

Battery life hrs using 105A/hr Batteries at 70% depth of discharge

(200 cycle life)

Watt	4 batt	8 batt
200	14,11 hrs	28,22 hrs
300	9,41 hrs	18,82 hrs
400	7,06 hrs	14,11 hrs
600	4,7hrs	9,41 hrs
800	3,53 hrs	7,06 hrs
1000	2,82 hrs	5,64 hrs
1200	2,35 hrs	4,7 hrs
1400	2,02hrs	4,03 hrs
1600	1,76 hrs	3,53 hrs
1800	1,57 hrs	3,14 hrs
2000	1,41 hrs	2,82 hrs
2200	1,28 hrs	2,57 hrs
2400	1,18 hrs	2,35 hrs

To use different power & battery settings use the calculator below

INTRODUCTION
The SH series is the ultimate sine wave inverter for houses, offices, security, factories and recreational use. These units can be used for anything within its specifications. Pure sine wave output makes this unit a must have for equipment where power outages range from 2 – 12 hours.

APPLICATION
PC’s, TV’s, Fans, Electric Drills, Refrigerators, Recorders, Water Machines, Lighting, Switchboards, Servers and other Home Appliances and Office Equipment

FEATURES

Intelligent long run model
Fully digitized microprocessor controlled
Wide input voltage window
Energy saving function with UPS green mode
Short circuit and overload protection
Cold start
Intelligent battery management
Compatible with generators
High inrush capabilities
Bypass output

3200W Pure sinewave inverter with 8x 110A/hour batteries feeding a D/B via a Changeover switch with earth leakage protection and Efergy power monitoring system

1500W Pure sinewave inverter with 2x 105A/hour batteries feeding a D/B via a Changeover switch with earth leakage protection, Ammeter and dedicated socket outlet

1440W Inverter with 4x 105A/hour batteries feeding a Sub D/B via a Changeover switch with earth leakage protection & Ammeter
(Main D/B is 3 phase)

1440W Inverter with 2x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection

1440W Inverter with 4x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection& Ammeter
(D/B is on other side of the wall)

1440W Inverter with 2x 105A/hour batteries feeding Dedicated Mini D/B and Main D/B via a Changeover switch with earth leakage protection& Ammeter
(Main D/B is on Floor above)
