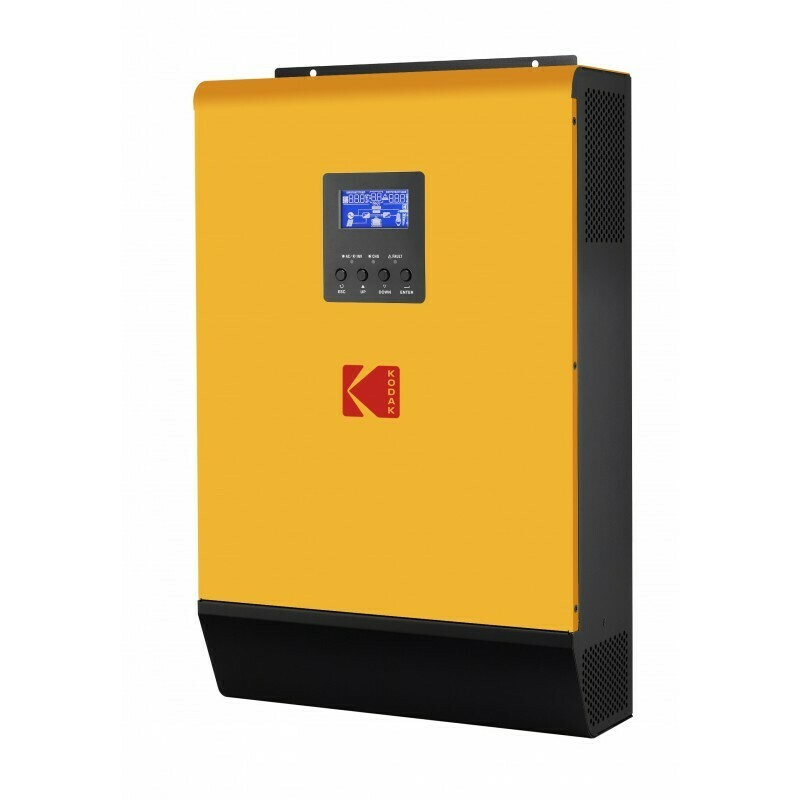

KODAK Solar Off-Grid Inverter VMIII 5kW 48V
+6
+5
+4
+3
+2

KODAK Solar Off-Grid Inverter VMIII 5kW 48V

Store/Prellex Power/Kodak Series Inverters
R9 478.00
1
Share this product with your friends
ShareSharePin it
KODAK Solar Off-Grid Inverter VMIII 5kW 48V
Store/Prellex Power/Kodak Series Inverters
Product Details
  • Removable LCD control module with multiple communications servers and ATM
  • Built-in Bluetooth for mobile monitoring (Android App is available)
  • Replaceable fan design for ease of maintenance
  • Supply load from Grid or PV, even battery is not available
  • Configurable AC/PV output usage timer and prioritization
  • Selectable high power charging current
  • Selectable input voltage range for home appliances and personal computers
  • Compatible to Utility Mains or generator input Auto restart while AC is recovering
  • Cold start function

View Specs View Specs View Specs

Note: The Kodak VMIII inverter has a RS485 port that can be connected to the RS485 port on the Pylontech batteries for BMS communication. Therefore no other control module, such as the ICC, is needed.

OG5.48 & OG-PLUS5.48 is not currently compatible with the Kodak L1 Battery standard communication protocol. Custom inverter settings need to be set.
  • Setting 12: 47.5V (setting back to grid)
  • Setting 13: 52.2V (Setting back to solar)
  • Setting 26: 53.2V (Bulk charge voltage)
  • Setting 27: 51V (Float charge voltage)
  • Setting 29: 46.5V (Cut- off voltage)
  • Please ensure you use the communications cable supplied with the Kodak VMIII inverter and not that supplied in the Pylon cable pack when connecting the Kodak VMIII inverter to Pylon batteries.
View Specs
1440W Inverter with 2x 105A/hour batteries feeding a Mini D/B with earth leakage protection & Ammeter
1200W inverter with 4x 105A/hour batteries feeding dedicated plug sockets with Pallet box for aesthetics
5000W Hybrid pure sinewave inverter with 8x 110 A/H batteries feeding to Main DB via changeover switch
1500W Pure sinewave inverter with 2x 105A/hour batteries feeding a D/B via a Changeover switch with earth leakage protection, Ammeter and dedicated socket outlet
1440W Inverter with 4x 105A/hour batteries feeding a Sub D/B via a Changeover switch with earth leakage protection & Ammeter
(Main D/B is 3 phase)
1440W Inverter with 2x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection
1440W Inverter with 4x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection& Ammeter
(D/B is on other side of the wall)
1440W Inverter with 2x 105A/hour batteries feeding Dedicated Mini D/B and Main D/B via a Changeover switch with earth leakage protection& Ammeter
(Main D/B is on Floor above)
1440W Inverter with 2x 105A/hour batteries & Ammeter feeding Dedicated Plugs for office computers
2000W Pure sinewave inverter Inverter with Lithium Iron phosphate battery feeding sub D/B via a changeover switch with ammeter & dedicated socket outlet


    Battery life hrs using 105A/hr Batteries at 50% depth of discharge
    (400 cycle life)
    Watt
    4 batt 8 batt
    200
    10 hrs 20 hrs
    300 6,72 hrs 13,44 hrs
    400 5 hrs 10 hrs
    600 3,36 hrs 6,72 hrs
    800 2,5 hrs 5 hrs
    1000
    2 hrs 4 hrs
    1200
    1,68 hrs 3,36 hrs
    1400 1,44 hrs 2,88 hrs
    1600 1,26 hrs 2,52 hrs
    1800 1,12 hrs 2,24 hrs
    2000 1 hrs 2 hrs
    2200 0,92 hrs 1,83 hrs
    2400 0,84 hrs 1,68 hrs
    Battery life hrs using 105A/hr Batteries at 70% depth of discharge
    (200 cycle life)
    Watt
    4 batt 8 batt
    200
    14,11 hrs 28,22 hrs
    300 9,41 hrs 18,82 hrs
    400 7,06 hrs 14,11 hrs
    600 4,7hrs 9,41 hrs
    800 3,53 hrs 7,06 hrs
    1000
    2,82 hrs 5,64 hrs
    1200
    2,35 hrs 4,7 hrs
    1400 2,02hrs 4,03 hrs
    1600 1,76 hrs 3,53 hrs
    1800 1,57 hrs 3,14 hrs
    2000 1,41 hrs 2,82 hrs
    2200 1,28 hrs 2,57 hrs
    2400 1,18 hrs 2,35 hrs
    To use different power & battery settings use the calculator below
    View Specs
