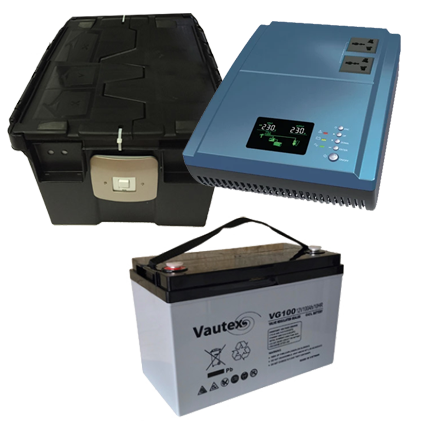

This system comes complete with Inverter, 1x 100A/H battery & battery box

The Blusky Series inverter is designed for a small office or home usage.

The units come in two models: 1000VA-12VDC or 2000VA-24VDC

and is equiped with an auto restart function.

The BLUSKY INVERTER Features

• Compact Size for convenient use

• Auto Restart Function

• Buzzer mute control

• LCD Display and buzzer alarms

• Fan speed auto adjust with low noise
• Low DC cut-off voltage setting
• 3 stage intelligent charging
• 10A or 20A charging for fast charging
• User selectable wide input voltage
• Off mode charging function
• Self-testing on start-up
• Cold start (DC)
• Solar Charge controller optional


Battery life hrs using 105A/hr Batteries at 50% depth of discharge

(400 cycle life)

Watt	2 batt	4 batt
200	5 hrs	10 hrs
300	3,3 hrs	6,6 hrs
400	2,5 hrs	5 hrs
600	1,68 hrs	3,36 hrs
800	1,26 hrs	2,52 hrs

Battery life hrs using 105A/hr Batteries at 70% depth of discharge

(200 cycle life)

Watt	2 batt	4 batt
200	7,06 hrs	14 rs
300	4,7 hrs	9,4hrs
400	3,5 hrs	7,06 hrs
600	2,35 hrs	4,7 hrs
800	1,76 hrs	3,53 hrs
1000	1,41 hrs	2,82 hrs

To use different power & battery settings use the calculator below

1440W Inverter with 2x 105A/hour batteries feeding a Mini D/B with earth leakage protection & Ammeter

1200W inverter with 4x 105A/hour batteries feeding dedicated plug sockets with Pallet box for aesthetics

5000W Hybrid pure sinewave inverter with 8x 110 A/H batteries feeding to Main DB via changeover switch

1500W Pure sinewave inverter with 2x 105A/hour batteries feeding a D/B via a Changeover switch with earth leakage protection, Ammeter and dedicated socket outlet

1440W Inverter with 4x 105A/hour batteries feeding a Sub D/B via a Changeover switch with earth leakage protection & Ammeter
(Main D/B is 3 phase)

1440W Inverter with 2x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection

1440W Inverter with 4x 105A/hour batteries feeding Main D/B via a Changeover switch with earth leakage protection& Ammeter
(D/B is on other side of the wall)

1440W Inverter with 2x 105A/hour batteries feeding Dedicated Mini D/B and Main D/B via a Changeover switch with earth leakage protection& Ammeter
(Main D/B is on Floor above)

1440W Inverter with 2x 105A/hour batteries & Ammeter feeding Dedicated Plugs for office computers

2000W Pure sinewave inverter Inverter with Lithium Iron phosphate battery feeding sub D/B via a changeover switch with ammeter & dedicated socket outlet
